Humidity / Dewpoint Spikes and Drops (pic)

Discussion specific to Fine Offset and similar rebadged weather stations
Post Reply
Cambium
Posts: 274
Joined: Wed 03 Aug 2011 11:19 pm
Weather Station: ProWeatherTP3000
Operating System: Windows10
Location: Coastal CT, USA
Contact:

Humidity / Dewpoint Spikes and Drops (pic)

Post by Cambium »

I checked this thread here. https://cumulus.hosiene.co.uk/viewtopic.php?f=13&t=7678

Its slightly different than my situation.

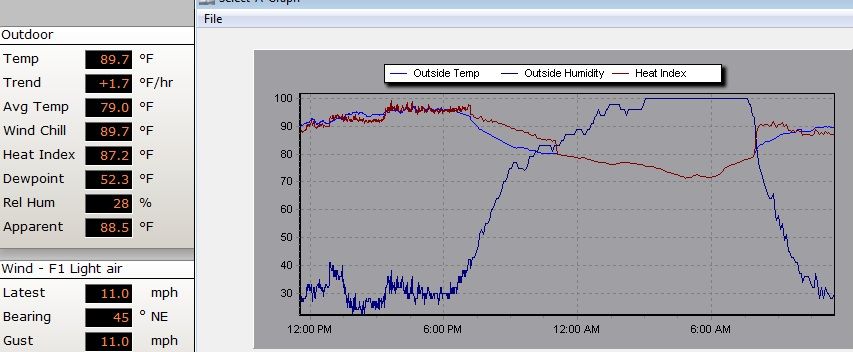

For some reason my humidity levels are too high and too low. As you can see with the graph it was 100% overnight and 30% now.

Dewpoints are generally in the 60s in the entire area and humidity closer to 50%. I also noticed the heat index is lower than actual temp. In reality it should be around 91-92 value at this point.

So I'm wondering how to use the spike removal tool. The help section explains it nice but I'm a bit confused on the "percentage" value. Do you have any thoughts on how to avoid these drops and spikes without constantly changing the multipliers?

User avatar
steve
Cumulus Author
Posts: 26672
Joined: Mon 02 Jun 2008 6:49 pm
Weather Station: None
Operating System: None
Location: Vienne, France
Contact:

Re: Humidity / Dewpoint Spikes and Drops (pic)

Post by steve »

The spike removal tool isn't going to help, because you're not getting spikes (sudden freak changes in reading which then return to a sensible value). If your humidity should really be around 50% for the entire duration of that graph, then I think you simply have a faulty sensor.
Steve
Cambium
Posts: 274
Joined: Wed 03 Aug 2011 11:19 pm
Weather Station: ProWeatherTP3000
Operating System: Windows10
Location: Coastal CT, USA
Contact:

Re: Humidity / Dewpoint Spikes and Drops (pic)

Post by Cambium »

I was worried about that.. I wonder if its the batteries going low. Havent changed them since last fall.

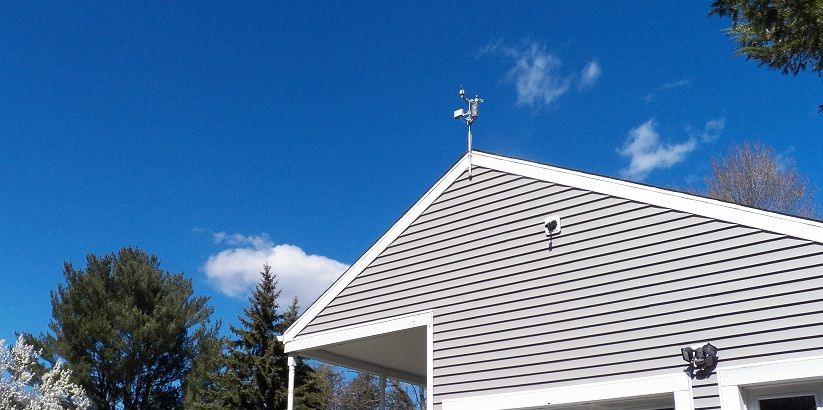

3 weeks ago I did lift it 1 foot higher then shown here because I was thinking the roof heat was drying it out during the day and at night moisture building on it. Doesnt seem to have helped.

Spider-Vice
Posts: 207
Joined: Sat 24 Sep 2011 2:46 pm
Weather Station: Davis Vantage Vue
Operating System: Raspbian

Re: Humidity / Dewpoint Spikes and Drops (pic)

Post by Spider-Vice »

The FO screen isn't enough to cover all the solar radiation and can provoke wrong humidify and temperature values. Try searching around the forum for ideas for better stevenson screens, they're all over :D
Post Reply
